Proxy class for FS broker. More...

#include <Client.h>

Inheritance diagram for Hypertable::FsBroker::Lib::Client:

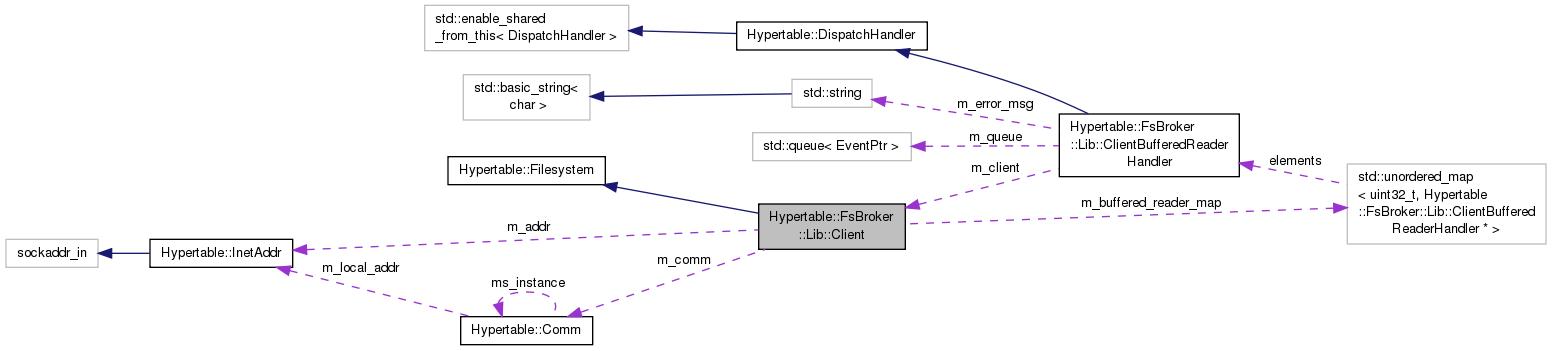

Collaboration diagram for Hypertable::FsBroker::Lib::Client:

Public Types
enum	{ SHUTDOWN_FLAG_IMMEDIATE = 0x01 }

Public Types inherited from Hypertable::Filesystem
enum	Flags : uint8_t { Flags::NONE =0, Flags::FLUSH =1, Flags::SYNC =2 }
	Enumeration type for append flags. More...

enum	OpenFlags { OPEN_FLAG_DIRECTIO = 0x00000001, OPEN_FLAG_OVERWRITE = 0x00000002, OPEN_FLAG_VERIFY_CHECKSUM = 0x00000004 }

Public Member Functions
virtual	~Client ()

	Client (ConnectionManagerPtr &conn_manager_ptr, const sockaddr_in &addr, uint32_t timeout_ms)
	Constructor with explicit values. More...

	Client (ConnectionManagerPtr &conn_manager_ptr, PropertiesPtr &cfg)
	Constructor with config var map. More...

	Client (Comm *comm, const sockaddr_in &addr, uint32_t timeout_ms)
	Constructor without connection manager. More...

	Client (const String &host, int port, uint32_t timeout_ms)
	Convenient contructor for dfs testing. More...

bool	wait_for_connection (uint32_t max_wait_ms)
	Waits up to max_wait_secs for a connection to be established with the FS broker. More...

void	open (const String &name, uint32_t flags, DispatchHandler *handler) override
	Opens a file asynchronously. More...

int	open (const String &name, uint32_t flags) override
	Opens a file. More...

int	open_buffered (const String &name, uint32_t flags, uint32_t buf_size, uint32_t outstanding, uint64_t start_offset=0, uint64_t end_offset=0) override
	Opens a file in buffered (readahead) mode. More...

void	decode_response_open (EventPtr &event, int32_t *fd) override
	Decodes the response from an open request. More...

void	create (const String &name, uint32_t flags, int32_t bufsz, int32_t replication, int64_t blksz, DispatchHandler *handler) override
	Creates a file asynchronously. More...

int	create (const String &name, uint32_t flags, int32_t bufsz, int32_t replication, int64_t blksz) override
	Creates a file. More...

void	decode_response_create (EventPtr &event, int32_t *fd) override
	Decodes the response from a create request. More...

void	close (int32_t fd, DispatchHandler *handler) override

void	close (int32_t fd) override

void	read (int32_t fd, size_t amount, DispatchHandler *handler) override

size_t	read (int32_t fd, void *dst, size_t amount) override

void	decode_response_read (EventPtr &event, const void *buffer, uint64_t offset, uint32_t *length) override
	Decodes the response from a read request. More...

void	append (int32_t fd, StaticBuffer &buffer, Flags flags, DispatchHandler *handler) override

size_t	append (int32_t fd, StaticBuffer &buffer, Flags flags=Flags::NONE) override

void	decode_response_append (EventPtr &event, uint64_t offset, uint32_t length) override
	Decodes the response from an append request. More...

void	seek (int32_t fd, uint64_t offset, DispatchHandler *handler) override

void	seek (int32_t fd, uint64_t offset) override

void	remove (const String &name, DispatchHandler *handler) override
	Removes a file asynchronously. More...

void	remove (const String &name, bool force=true) override
	Removes a file. More...

void	length (const String &name, bool accurate, DispatchHandler *handler) override
	Gets the length of a file asynchronously. More...

int64_t	length (const String &name, bool accurate=true) override
	Gets the length of a file. More...

int64_t	decode_response_length (EventPtr &event) override
	Decodes the response from a length request. More...

void	pread (int32_t fd, size_t len, uint64_t offset, bool verify_checksum, DispatchHandler *handler) override

size_t	pread (int32_t fd, void *dst, size_t len, uint64_t offset, bool verify_checksum) override

void	decode_response_pread (EventPtr &event, const void *buffer, uint64_t offset, uint32_t *length) override
	Decodes the response from a pread request. More...

void	mkdirs (const String &name, DispatchHandler *handler) override
	Creates a directory asynchronously. More...

void	mkdirs (const String &name) override
	Creates a directory. More...

void	flush (int32_t fd, DispatchHandler *handler) override

void	flush (int32_t fd) override

void	sync (int32_t fd) override

void	rmdir (const String &name, DispatchHandler *handler) override
	Recursively removes a directory asynchronously. More...

void	rmdir (const String &name, bool force=true) override
	Recursively removes a directory. More...

void	readdir (const String &name, DispatchHandler *handler) override
	Obtains a listing of all files in a directory asynchronously. More...

void	readdir (const String &name, std::vector< Dirent > &listing) override
	Obtains a listing of all files in a directory. More...

void	decode_response_readdir (EventPtr &event, std::vector< Dirent > &listing) override
	Decodes the response from a readdir request. More...

void	exists (const String &name, DispatchHandler *handler) override
	Determines if a file exists asynchronously. More...

bool	exists (const String &name) override
	Determines if a file exists. More...

bool	decode_response_exists (EventPtr &event) override
	Decodes the response from an exists request. More...

void	rename (const String &src, const String &dst, DispatchHandler *handler) override
	Rename a path asynchronously. More...

void	rename (const String &src, const String &dst) override
	Rename a path. More...

void	status (Status &status, Timer *timer=0) override
	Check status of filesystem. More...

void	decode_response_status (EventPtr &event, Status &status) override
	Decodes the response from an status request. More...

void	debug (int32_t command, StaticBuffer &serialized_parameters) override
	Invokes debug request asynchronously. More...

void	debug (int32_t command, StaticBuffer &serialized_parameters, DispatchHandler *handler) override
	Invokes debug request. More...

void	shutdown (uint16_t flags, DispatchHandler *handler)
	Shuts down the FS broker. More...

uint32_t	get_timeout ()
	Gets the configured request timeout value. More...

Public Member Functions inherited from Hypertable::Filesystem
virtual	~Filesystem ()

virtual void	close (int fd, DispatchHandler *handler)=0
	Closes a file asynchronously. More...

virtual void	close (int fd)=0
	Closes a file. More...

virtual void	read (int fd, size_t len, DispatchHandler *handler)=0
	Reads data from a file at the current position asynchronously. More...

virtual size_t	read (int fd, void *dst, size_t len)=0
	Reads data from a file at the current position. More...

virtual void	append (int fd, StaticBuffer &buffer, Flags flags, DispatchHandler *handler)=0
	Appends data to a file asynchronously. More...

virtual size_t	append (int fd, StaticBuffer &buffer, Flags flags=Flags::NONE)=0
	Appends data to a file. More...

virtual void	seek (int fd, uint64_t offset, DispatchHandler *handler)=0
	Seeks current file position asynchronously. More...

virtual void	seek (int fd, uint64_t offset)=0
	Seeks current file position. More...

virtual void	pread (int fd, size_t amount, uint64_t offset, bool verify_checksum, DispatchHandler *handler)=0
	Reads data from a file at the specified position asynchronously. More...

virtual size_t	pread (int fd, void *dst, size_t len, uint64_t offset, bool verify_checksum=true)=0
	Reads data from a file at the specified position. More...

virtual void	flush (int fd, DispatchHandler *handler)=0
	Flushes a file asynchronously. More...

virtual void	flush (int fd)=0
	Flushes a file. More...

virtual void	sync (int fd)=0
	Syncs a file. More...

Private Member Functions
void	send_message (CommBufPtr &cbuf, DispatchHandler handler, Timer timer=0)
	Sends a message to the FS broker. More...

Private Attributes
std::mutex	m_mutex

Comm *	m_comm

ConnectionManagerPtr	m_conn_mgr

InetAddr	m_addr

uint32_t	m_timeout_ms

std::unordered_map< uint32_t, ClientBufferedReaderHandler * >	m_buffered_reader_map

Additional Inherited Members
Static Public Member Functions inherited from Hypertable::Filesystem
static int	decode_response (EventPtr &event)
	Decodes the response from an request that only returns an error code. More...

static String	dirname (String name, char separator= '/')
	A posix-compliant dirname() which strips the last component from a file name. More...

static String	basename (String name, char separator= '/')
	A posix-compliant basename() which strips directory names from a filename. More...

Detailed Description

Proxy class for FS broker.

As specified in the general contract for a Filesystem, commands that operate on the same file descriptor are serialized by the underlying filesystem. In other words, if you issue three asynchronous commands, they will get carried out and their responses will come back in the same order in which they were issued.

Definition at line 58 of file Client.h.

Constructor & Destructor Documentation

Client::~Client ( )

virtual

this causes deadlock in RangeServer shutdown if (m_conn_mgr) m_conn_mgr->remove(m_addr);

Definition at line 119 of file Client.cc.

Client::Client	(	ConnectionManagerPtr &	conn_manager_ptr,
		const sockaddr_in &	addr,
		uint32_t	timeout_ms
	)

Constructor with explicit values.

Connects to the FS broker at the address given by the addr argument and uses the timeout argument for the request timeout values.

Parameters

conn_manager_ptr	smart pointer to connection manager
addr	address of FS broker to connect to
timeout_ms	timeout value in milliseconds to use in requests

Definition at line 74 of file Client.cc.

Client::Client	(	ConnectionManagerPtr &	conn_manager_ptr,
		PropertiesPtr &	cfg
	)

Constructor with config var map.

The following properties are read to determine the location of the broker and the request timeout value:

FsBroker.port
FsBroker.host
FsBroker.timeout

Parameters

conn_manager_ptr	smart pointer to connection manager
cfg	config variables map

Definition at line 82 of file Client.cc.

Client::Client	(	Comm *	comm,
		const sockaddr_in &	addr,
		uint32_t	timeout_ms
	)

Constructor without connection manager.

Parameters

comm	pointer to the Comm object
addr	remote address of already connected FsBroker
timeout_ms	timeout value in milliseconds to use in requests

Definition at line 103 of file Client.cc.

Client::Client	(	const String &	host,
		int	port,
		uint32_t	timeout_ms
	)

Convenient contructor for dfs testing.

Parameters

host	- dfs hostname
port	- dfs port
timeout_ms	- timeout (in milliseconds) for requests

Definition at line 107 of file Client.cc.

Member Function Documentation

void Client::append	(	int32_t	fd,
		StaticBuffer &	buffer,
		Flags	flags,
		DispatchHandler *	handler
	)

override

Definition at line 404 of file Client.cc.

size_t Client::append	(	int32_t	fd,
		StaticBuffer &	buffer,
		Flags	flags = `Flags::NONE`
	)

override

Definition at line 430 of file Client.cc.

void Client::close	(	int32_t	fd,
		DispatchHandler *	handler
	)

override

Definition at line 260 of file Client.cc.

void Client::close ( int32_t fd )

override

Definition at line 288 of file Client.cc.

void Client::create	(	const String &	name,
		uint32_t	flags,
		int32_t	bufsz,
		int32_t	replication,
		int64_t	blksz,
		DispatchHandler *	handler
	)

overridevirtual

Creates a file asynchronously.

Issues a create file request with various create mode parameters. The caller will get notified of successful completion or error via the given dispatch handler. It is up to the caller to deserialize the returned file descriptor from the MESSAGE event object.

Parameters

name	Absolute path name of file to open
flags	Open flags (OPEN_FLAG_DIRECTIO or OPEN_FLAG_OVERWRITE)
bufsz	Buffer size to use for the underlying FS
replication	Replication factor to use for this file
blksz	Block size to use for the underlying FS
handler	The dispatch handler which will handle the reply

command	debug command identifier
serialized_parameters	command specific serialized parameters

command	The debug command identifier
serialized_parameters	The command specific serialized parameters
handler	The dispatch/callback handler

event	A reference to the response event
offset	Address of offset variable
length	Address of length variable

event	reference to response event
fd	Address of variable to hold file descriptor

event	A reference to the response event
buffer	Address of buffer pointer
offset	Address of offset variable
length	Address of length variable

event	A reference to the response event
listing	Reference to output vector of Dirent objects

event	Reference to response event
status	Reference to status information output parameter

name	The absolute pathname of file
handler	The dispatch handler

name	The absolute pathname of file
accurate	Whether the accurate or an estimated file length is required (an hdfs performance optimization)
handler	The dispatch handler

name	The absolute pathname of directory to create
handler	The dispatch handler

name	The absolute pathname of directory
handler	The dispatch handler

name	Absolute pathname of directory
listing	Reference to output vector of Dirent objects for each entry

name	The absolute pathname of file to delete
handler	The dispatch handler

name	The absolute pathname of file to delete
force	If true then ignore non-existence error

src	The source path
dst	The destination path
handler	The dispatch/callback handler

name	The absolute pathname of directory to remove
handler	The dispatch handler

cbuf	message to send
handler	response handler
timer	Deadline timer

void Client::shutdown	(	uint16_t	flags,
		DispatchHandler *	handler
	)

flags	controls how broker gets shut down
handler	response handler

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
