Provides the ability to mutate a table in the form of adding and deleting rows and cells. More...

#include <TableMutatorAsync.h>

Inheritance diagram for Hypertable::TableMutatorAsync:

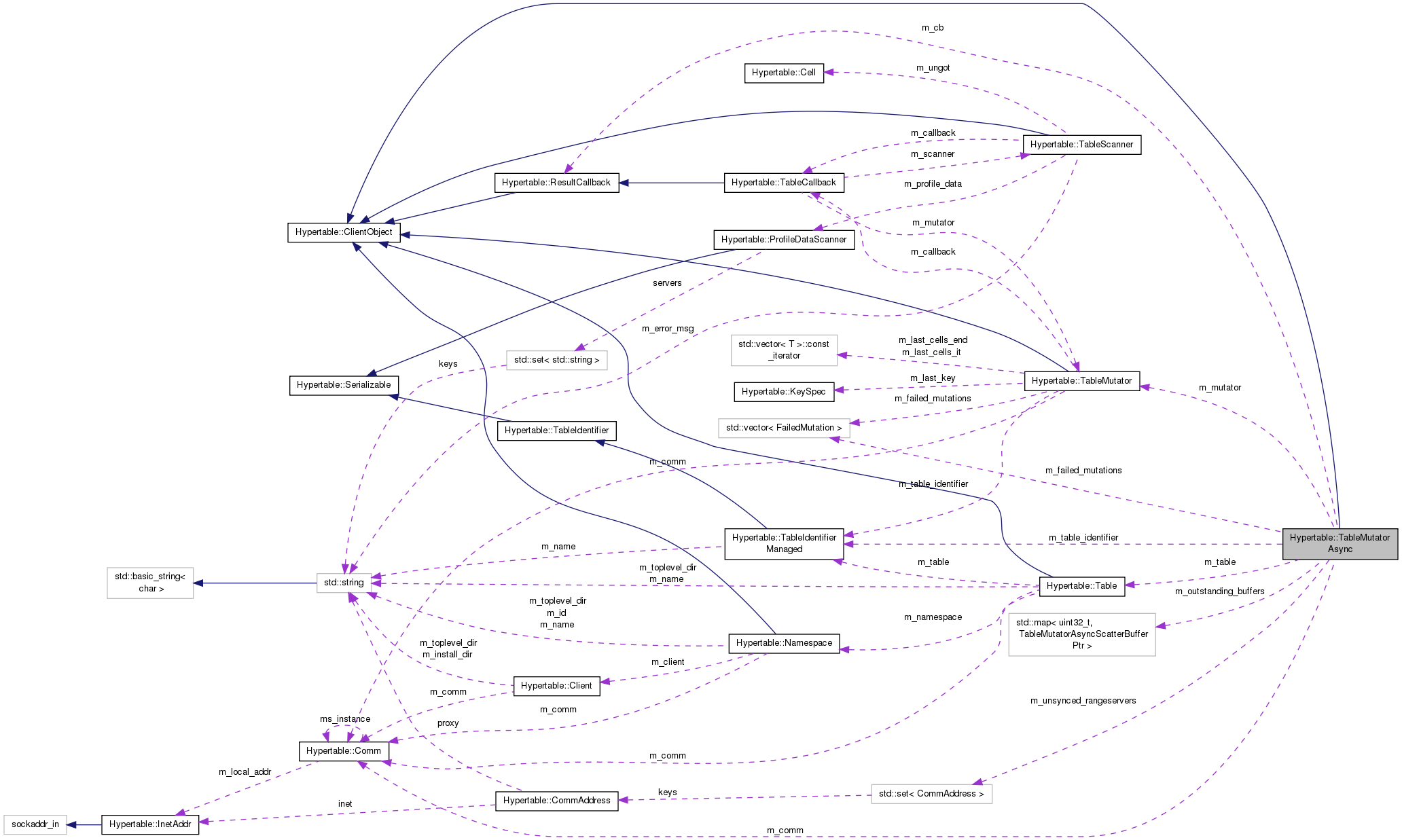

Collaboration diagram for Hypertable::TableMutatorAsync:

Public Member Functions
	TableMutatorAsync (PropertiesPtr &props, Comm comm, ApplicationQueueInterfacePtr &app_queue, Table table, RangeLocatorPtr &range_locator, uint32_t timeout_ms, ResultCallback *cb, uint32_t flags=0, bool explicit_block_only=false)
	Constructs the TableMutatorAsync object. More...

	TableMutatorAsync (std::mutex &mutex, std::condition_variable &cond, PropertiesPtr &props, Comm comm, ApplicationQueueInterfacePtr &app_queue, Table table, RangeLocatorPtr &range_locator, uint32_t timeout_ms, ResultCallback cb, uint32_t flags=0, bool explicit_block_only=false, TableMutator mutator=0)

virtual	~TableMutatorAsync ()
	Destructor for TableMutatorAsync object Make sure buffers are flushed and unsynced rangeservers get synced. More...

virtual uint64_t	memory_used ()
	Returns the amount of memory used by the collected mutations in the current buffer. More...

uint64_t	get_resend_count ()
	There are certain circumstances when mutations get flushed to the wrong range server due to stale range location information. More...

void	set (const KeySpec &key, const void *value, uint32_t value_len)
	Inserts a cell into the table. More...

void	set (const KeySpec &key, const char *value)
	Convenient helper for null-terminated values. More...

void	set (const KeySpec &key, const std::string &value)
	Convenient helper for std::string values. More...

void	set_delete (const KeySpec &key)
	Deletes an entire row, a column family in a particular row, or a specific cell within a row. More...

void	set_cells (const Cells &cells)
	Insert a bunch of cells into the table (atomically if cells are in the same range/row) More...

void	set_cells (Cells::const_iterator start, Cells::const_iterator end)
	Insert a bunch of cells into the table (atomically if cells are in the same range/row) More...

void	flush (bool sync=true)
	Flushes the current buffer accumulated mutations to their respective range servers. More...

void	buffer_finish (uint32_t id, int error, bool retry)
	This is where buffers call back into when their outstanding operations are complete. More...

void	cancel ()

bool	is_cancelled ()

void	get_unsynced_rangeservers (std::vector< CommAddress > &unsynced)

TableMutatorAsyncScatterBufferPtr	get_outstanding_buffer (size_t id)

bool	retry (uint32_t timeout_ms)

void	update_outstanding (TableMutatorAsyncScatterBufferPtr &buffer)

void	get_failed_mutations (FailedMutations &failed_mutations)

bool	has_outstanding ()

bool	has_outstanding_unlocked ()

bool	needs_flush ()

SchemaPtr	schema ()

Public Member Functions inherited from Hypertable::ClientObject
virtual	~ClientObject ()
	Destructor. More...

Protected Member Functions
void	wait_for_completion ()

Private Types
enum	Operation { SET = 1, SET_CELLS, SET_DELETE, FLUSH }

typedef std::map< uint32_t, TableMutatorAsyncScatterBufferPtr >	ScatterBufferAsyncMap

Private Member Functions
void	flush_with_tablequeue (TableMutator *mutator, bool sync=true)

void	initialize (PropertiesPtr &props)

void	initialize_indices (PropertiesPtr &props)

void	update_without_index (const Cell &cell)

void	update_without_index (const Key &full_key, const ColumnFamilySpec *cf, const Cell &cell)

void	update_without_index (const Key &full_key, const ColumnFamilySpec cf, const void value, size_t value_len)

void	do_sync ()
	Calls sync on any unsynced rangeservers and waits for completion. More...

void	to_full_key (const void row, const char cf, const void cq, int64_t ts, int64_t rev, uint8_t flag, Key &full_key, ColumnFamilySpec *pcf=0)

void	to_full_key (const KeySpec &key, Key &full_key, ColumnFamilySpec **cf=0)

void	to_full_key (const Cell &cell, Key &full_key, ColumnFamilySpec **cf=0)

void	update_unsynced_rangeservers (const CommAddressSet &unsynced)

void	handle_send_exceptions (const String &info)

bool	mutated ()

bool	key_uses_index (Key &key)

void	update_with_index (Key &key, const ColumnFamilySpec cf, const void value, uint32_t value_len)

Private Attributes
PropertiesPtr	m_props

Comm *	m_comm

ApplicationQueueInterfacePtr	m_app_queue

Table *	m_table {}

SchemaPtr	m_schema

RangeLocatorPtr	m_range_locator

TableIdentifierManaged	m_table_identifier

uint64_t	m_memory_used {}

uint64_t	m_max_memory {}

ScatterBufferAsyncMap	m_outstanding_buffers

TableMutatorAsyncScatterBufferPtr	m_current_buffer

uint64_t	m_resends {}

uint32_t	m_timeout_ms {}

ResultCallback *	m_cb {}

uint32_t	m_flags {}

CommAddressSet	m_unsynced_rangeservers

std::mutex	m_buffer_mutex

std::mutex &	m_mutex

std::mutex	m_member_mutex

std::condition_variable	m_buffer_cond

std::condition_variable &	m_cond

uint32_t	m_next_buffer_id {}

FailedMutations	m_failed_mutations

TableMutatorAsyncPtr	m_index_mutator

TableMutatorAsyncPtr	m_qualifier_index_mutator

IndexMutatorCallbackPtr	m_imc

TableMutator *	m_mutator {}

bool	m_explicit_block_only {}

bool	m_cancelled {}

bool	m_mutated {}

bool	m_use_index {}

Static Private Attributes
static const uint32_t	ms_max_sync_retries = 5

Friends
class	TableMutator
	flush function reserved for use in TableMutator More...

class	IndexMutatorCallback

Detailed Description

Provides the ability to mutate a table in the form of adding and deleting rows and cells.

Objects of this class are used to collect mutations and periodically flush them to the appropriate range servers. There is a 1 MB buffer of mutations for each range server. When one of the buffers fills up all the buffers are flushed to their respective range servers.

Definition at line 61 of file TableMutatorAsync.h.

Member Typedef Documentation

typedef std::map<uint32_t, TableMutatorAsyncScatterBufferPtr> Hypertable::TableMutatorAsync::ScatterBufferAsyncMap

private

Definition at line 264 of file TableMutatorAsync.h.

Member Enumeration Documentation

enum Hypertable::TableMutatorAsync::Operation

private

Enumerator
SET
SET_CELLS
SET_DELETE
FLUSH

Definition at line 222 of file TableMutatorAsync.h.

Constructor & Destructor Documentation

TableMutatorAsync::TableMutatorAsync	(	PropertiesPtr &	props,
		Comm *	comm,
		ApplicationQueueInterfacePtr &	app_queue,
		Table *	table,
		RangeLocatorPtr &	range_locator,
		uint32_t	timeout_ms,
		ResultCallback *	cb,
		uint32_t	flags = `0`,
		bool	explicit_block_only = `false`
	)

Constructs the TableMutatorAsync object.

Parameters

props	reference to properties smart pointer
comm	pointer to the Comm layer
app_queue	pointer to the Application Queue
table	pointer to the table object
range_locator	smart pointer to range locator
timeout_ms	maximum time in milliseconds to allow methods to execute before throwing an exception
cb	callback for this mutator
flags	rangeserver client update command flags
explicit_block_only	if true TableMutatorAsync will not auto_flush or wait_for_completion unless explicitly told to do so by caller

Definition at line 63 of file TableMutatorAsync.cc.

TableMutatorAsync::TableMutatorAsync	(	std::mutex &	mutex,
		std::condition_variable &	cond,
		PropertiesPtr &	props,
		Comm *	comm,
		ApplicationQueueInterfacePtr &	app_queue,
		Table *	table,
		RangeLocatorPtr &	range_locator,
		uint32_t	timeout_ms,
		ResultCallback *	cb,
		uint32_t	flags = `0`,
		bool	explicit_block_only = `false`,
		TableMutator *	mutator = `0`
	)

Definition at line 75 of file TableMutatorAsync.cc.

TableMutatorAsync::~TableMutatorAsync ( )

virtual

Destructor for TableMutatorAsync object Make sure buffers are flushed and unsynced rangeservers get synced.

Definition at line 106 of file TableMutatorAsync.cc.

Member Function Documentation

void TableMutatorAsync::buffer_finish	(	uint32_t	id,
		int	error,
		bool	retry
	)

This is where buffers call back into when their outstanding operations are complete.

Parameters

id	id of the buffer
error	error code for finished buffer
retry	true if buffer has retries

Definition at line 643 of file TableMutatorAsync.cc.

void TableMutatorAsync::cancel ( )

Definition at line 449 of file TableMutatorAsync.cc.

void TableMutatorAsync::do_sync ( )

private

Calls sync on any unsynced rangeservers and waits for completion.

Commit log sync failed

Definition at line 543 of file TableMutatorAsync.cc.

void TableMutatorAsync::flush ( bool sync = true )

Flushes the current buffer accumulated mutations to their respective range servers.

Parameters

sync	if false then theres no guarantee that the data is synced disk

Definition at line 468 of file TableMutatorAsync.cc.

void TableMutatorAsync::flush_with_tablequeue	(	TableMutator *	mutator,
		bool	sync = `true`
	)

private

Definition at line 472 of file TableMutatorAsync.cc.

void Hypertable::TableMutatorAsync::get_failed_mutations ( FailedMutations & failed_mutations )

inline

Definition at line 187 of file TableMutatorAsync.h.

TableMutatorAsyncScatterBufferPtr TableMutatorAsync::get_outstanding_buffer ( size_t id )

Definition at line 619 of file TableMutatorAsync.cc.

uint64_t Hypertable::TableMutatorAsync::get_resend_count ( )

inline

There are certain circumstances when mutations get flushed to the wrong range server due to stale range location information.

When the correct location information is discovered, these mutations get resent to the proper range server. This method returns the number of mutations that were resent.

Returns: number of mutations that were resent

Definition at line 113 of file TableMutatorAsync.h.

void TableMutatorAsync::get_unsynced_rangeservers ( std::vector< CommAddress > & unsynced )

Definition at line 536 of file TableMutatorAsync.cc.

void TableMutatorAsync::handle_send_exceptions ( const String & info )

private

Definition at line 42 of file TableMutatorAsync.cc.

bool Hypertable::TableMutatorAsync::has_outstanding ( )

inline

Definition at line 191 of file TableMutatorAsync.h.

bool Hypertable::TableMutatorAsync::has_outstanding_unlocked ( )

inline

Definition at line 195 of file TableMutatorAsync.h.

void TableMutatorAsync::initialize ( PropertiesPtr & props )

private

Definition at line 87 of file TableMutatorAsync.cc.

void TableMutatorAsync::initialize_indices ( PropertiesPtr & props )

private

Definition at line 127 of file TableMutatorAsync.cc.

bool TableMutatorAsync::is_cancelled ( )

Definition at line 454 of file TableMutatorAsync.cc.

bool Hypertable::TableMutatorAsync::key_uses_index ( Key & key )

private

virtual uint64_t Hypertable::TableMutatorAsync::memory_used ( )

inlinevirtual

Returns the amount of memory used by the collected mutations in the current buffer.

Returns: amount of memory used by the collected mutations.

Definition at line 102 of file TableMutatorAsync.h.

bool Hypertable::TableMutatorAsync::mutated ( )

inlineprivate

Definition at line 254 of file TableMutatorAsync.h.

bool TableMutatorAsync::needs_flush ( )

Definition at line 459 of file TableMutatorAsync.cc.

bool Hypertable::TableMutatorAsync::retry ( uint32_t timeout_ms )

SchemaPtr Hypertable::TableMutatorAsync::schema ( )

inline

Definition at line 200 of file TableMutatorAsync.h.

void TableMutatorAsync::set	(	const KeySpec &	key,
		const void *	value,
		uint32_t	value_len
	)

Inserts a cell into the table.

Parameters

key	key of the cell being inserted
value	pointer to the value to store in the cell
value_len	length of data pointed to by value

Definition at line 192 of file TableMutatorAsync.cc.

void Hypertable::TableMutatorAsync::set	(	const KeySpec &	key,
		const char *	value
	)

inline

Convenient helper for null-terminated values.

Definition at line 127 of file TableMutatorAsync.h.

void Hypertable::TableMutatorAsync::set	(	const KeySpec &	key,
		const std::string &	value
	)

inline

Convenient helper for std::string values.

Definition at line 137 of file TableMutatorAsync.h.

void Hypertable::TableMutatorAsync::set_cells ( const Cells & cells )

inline

Insert a bunch of cells into the table (atomically if cells are in the same range/row)

Parameters

cells a list of cells

Definition at line 155 of file TableMutatorAsync.h.

void TableMutatorAsync::set_cells	(	Cells::const_iterator	start,
		Cells::const_iterator	end
	)

Insert a bunch of cells into the table (atomically if cells are in the same range/row)

Parameters

start	Iterator pointing to start of cells to be inserted
end	Iterator pointing to end of cells to be inserted

Definition at line 294 of file TableMutatorAsync.cc.

void TableMutatorAsync::set_delete ( const KeySpec & key )

Deletes an entire row, a column family in a particular row, or a specific cell within a row.

Parameters

key	key of the row or cell(s) being deleted

Definition at line 350 of file TableMutatorAsync.cc.

void TableMutatorAsync::to_full_key	(	const void *	row,
		const char *	cf,
		const void *	cq,
		int64_t	ts,
		int64_t	rev,
		uint8_t	flag,
		Key &	full_key,
		ColumnFamilySpec **	pcf = `0`
	)

private

Definition at line 401 of file TableMutatorAsync.cc.

void Hypertable::TableMutatorAsync::to_full_key	(	const KeySpec &	key,
		Key &	full_key,
		ColumnFamilySpec **	cf = `0`
	)

inlineprivate

Definition at line 238 of file TableMutatorAsync.h.

void Hypertable::TableMutatorAsync::to_full_key	(	const Cell &	cell,
		Key &	full_key,
		ColumnFamilySpec **	cf = `0`
	)

inlineprivate

Definition at line 244 of file TableMutatorAsync.h.

void TableMutatorAsync::update_outstanding ( TableMutatorAsyncScatterBufferPtr & buffer )

Definition at line 633 of file TableMutatorAsync.cc.

void TableMutatorAsync::update_unsynced_rangeservers ( const CommAddressSet & unsynced )

private

Definition at line 628 of file TableMutatorAsync.cc.

void TableMutatorAsync::update_with_index	(	Key &	key,
		const ColumnFamilySpec *	cf,
		const void *	value,
		uint32_t	value_len
	)

private

Definition at line 161 of file TableMutatorAsync.cc.

void TableMutatorAsync::update_without_index ( const Cell & cell )

private

Definition at line 237 of file TableMutatorAsync.cc.

void TableMutatorAsync::update_without_index	(	const Key &	full_key,
		const ColumnFamilySpec *	cf,
		const Cell &	cell
	)

private

Definition at line 270 of file TableMutatorAsync.cc.

void TableMutatorAsync::update_without_index	(	const Key &	full_key,
		const ColumnFamilySpec *	cf,
		const void *	value,
		size_t	value_len
	)

private

Definition at line 277 of file TableMutatorAsync.cc.

void TableMutatorAsync::wait_for_completion ( )

protected

Definition at line 155 of file TableMutatorAsync.cc.

Friends And Related Function Documentation

friend class IndexMutatorCallback

friend

Definition at line 214 of file TableMutatorAsync.h.

friend class TableMutator

friend

flush function reserved for use in TableMutator

Definition at line 207 of file TableMutatorAsync.h.

Member Data Documentation

ApplicationQueueInterfacePtr Hypertable::TableMutatorAsync::m_app_queue

private

Definition at line 270 of file TableMutatorAsync.h.

std::condition_variable Hypertable::TableMutatorAsync::m_buffer_cond

private

Definition at line 287 of file TableMutatorAsync.h.

std::mutex Hypertable::TableMutatorAsync::m_buffer_mutex

private

Definition at line 284 of file TableMutatorAsync.h.

bool Hypertable::TableMutatorAsync::m_cancelled {}

private

Definition at line 296 of file TableMutatorAsync.h.

ResultCallback* Hypertable::TableMutatorAsync::m_cb {}

private

Definition at line 281 of file TableMutatorAsync.h.

Comm* Hypertable::TableMutatorAsync::m_comm

private

Definition at line 269 of file TableMutatorAsync.h.

std::condition_variable& Hypertable::TableMutatorAsync::m_cond

private

Definition at line 288 of file TableMutatorAsync.h.

TableMutatorAsyncScatterBufferPtr Hypertable::TableMutatorAsync::m_current_buffer

private

Definition at line 278 of file TableMutatorAsync.h.

bool Hypertable::TableMutatorAsync::m_explicit_block_only {}

private

Definition at line 295 of file TableMutatorAsync.h.

FailedMutations Hypertable::TableMutatorAsync::m_failed_mutations

private

Definition at line 290 of file TableMutatorAsync.h.

uint32_t Hypertable::TableMutatorAsync::m_flags {}

private

Definition at line 282 of file TableMutatorAsync.h.

IndexMutatorCallbackPtr Hypertable::TableMutatorAsync::m_imc

private

Definition at line 293 of file TableMutatorAsync.h.

TableMutatorAsyncPtr Hypertable::TableMutatorAsync::m_index_mutator

private

Definition at line 291 of file TableMutatorAsync.h.

uint64_t Hypertable::TableMutatorAsync::m_max_memory {}

private

Definition at line 276 of file TableMutatorAsync.h.

std::mutex Hypertable::TableMutatorAsync::m_member_mutex

private

Definition at line 286 of file TableMutatorAsync.h.

uint64_t Hypertable::TableMutatorAsync::m_memory_used {}

private

Definition at line 275 of file TableMutatorAsync.h.

bool Hypertable::TableMutatorAsync::m_mutated {}

private

Definition at line 297 of file TableMutatorAsync.h.

TableMutator* Hypertable::TableMutatorAsync::m_mutator {}

private

Definition at line 294 of file TableMutatorAsync.h.

std::mutex& Hypertable::TableMutatorAsync::m_mutex

private

Definition at line 285 of file TableMutatorAsync.h.

uint32_t Hypertable::TableMutatorAsync::m_next_buffer_id {}

private

Definition at line 289 of file TableMutatorAsync.h.

ScatterBufferAsyncMap Hypertable::TableMutatorAsync::m_outstanding_buffers

private

Definition at line 277 of file TableMutatorAsync.h.

PropertiesPtr Hypertable::TableMutatorAsync::m_props

private

Definition at line 268 of file TableMutatorAsync.h.

TableMutatorAsyncPtr Hypertable::TableMutatorAsync::m_qualifier_index_mutator

private

Definition at line 292 of file TableMutatorAsync.h.

RangeLocatorPtr Hypertable::TableMutatorAsync::m_range_locator

private

Definition at line 273 of file TableMutatorAsync.h.

uint64_t Hypertable::TableMutatorAsync::m_resends {}

private

Definition at line 279 of file TableMutatorAsync.h.

SchemaPtr Hypertable::TableMutatorAsync::m_schema

private

Definition at line 272 of file TableMutatorAsync.h.

Table* Hypertable::TableMutatorAsync::m_table {}

private

Definition at line 271 of file TableMutatorAsync.h.

TableIdentifierManaged Hypertable::TableMutatorAsync::m_table_identifier

private

Definition at line 274 of file TableMutatorAsync.h.

uint32_t Hypertable::TableMutatorAsync::m_timeout_ms {}

private

Definition at line 280 of file TableMutatorAsync.h.

CommAddressSet Hypertable::TableMutatorAsync::m_unsynced_rangeservers

private

Definition at line 283 of file TableMutatorAsync.h.

bool Hypertable::TableMutatorAsync::m_use_index {}

private

Definition at line 298 of file TableMutatorAsync.h.

const uint32_t Hypertable::TableMutatorAsync::ms_max_sync_retries = 5

staticprivate

Definition at line 266 of file TableMutatorAsync.h.

The documentation for this class was generated from the following files:

/home/doug/src/hypertable/src/cc/Hypertable/Lib/TableMutatorAsync.h
/home/doug/src/hypertable/src/cc/Hypertable/Lib/TableMutatorAsync.cc

Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Friends

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
